SPGO Piston Seal

Brand : SANPING SEAL
ltem NO. : SPGO
Product Origin : China
Shipping Port : Guangzhou
MOQ : 10 pieces

Categories: ,

Contact Now

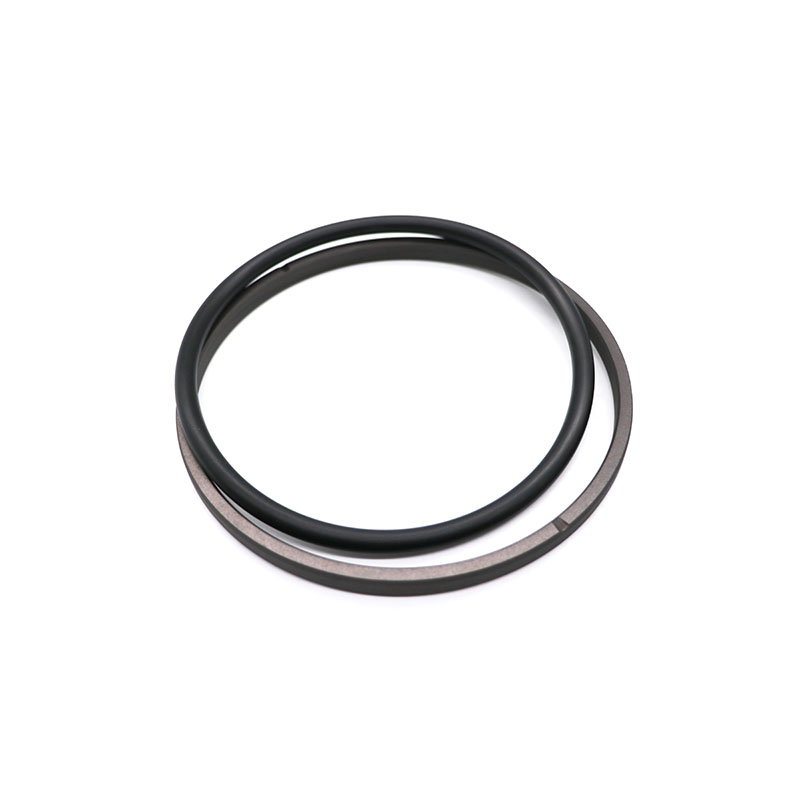

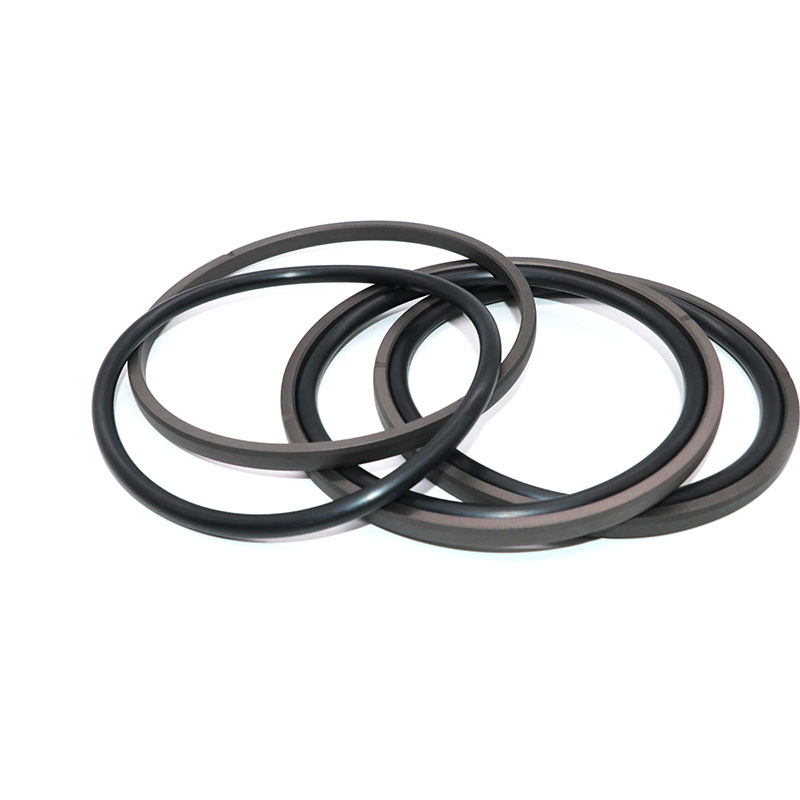

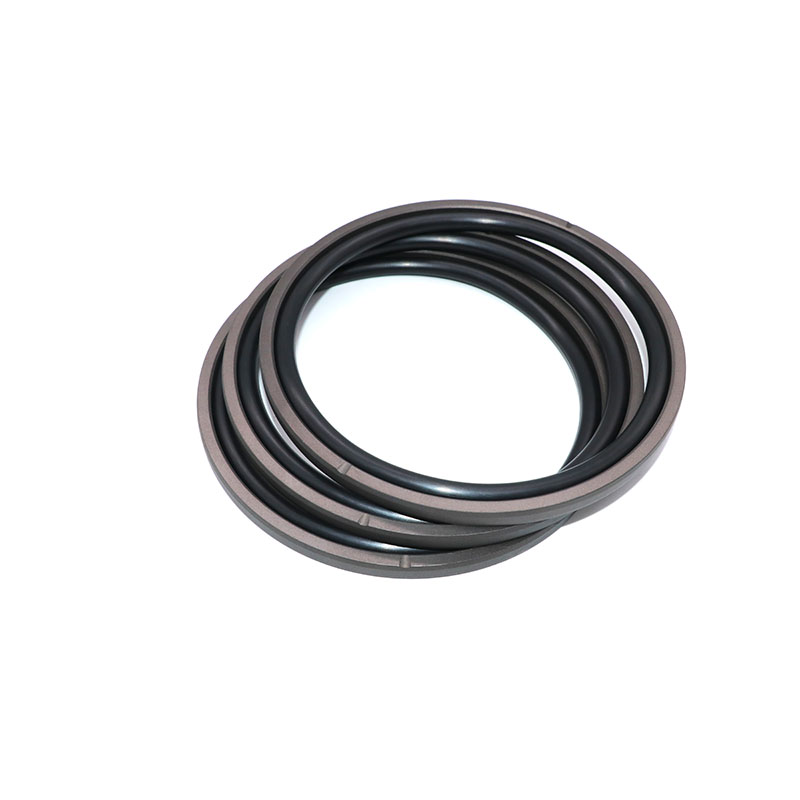

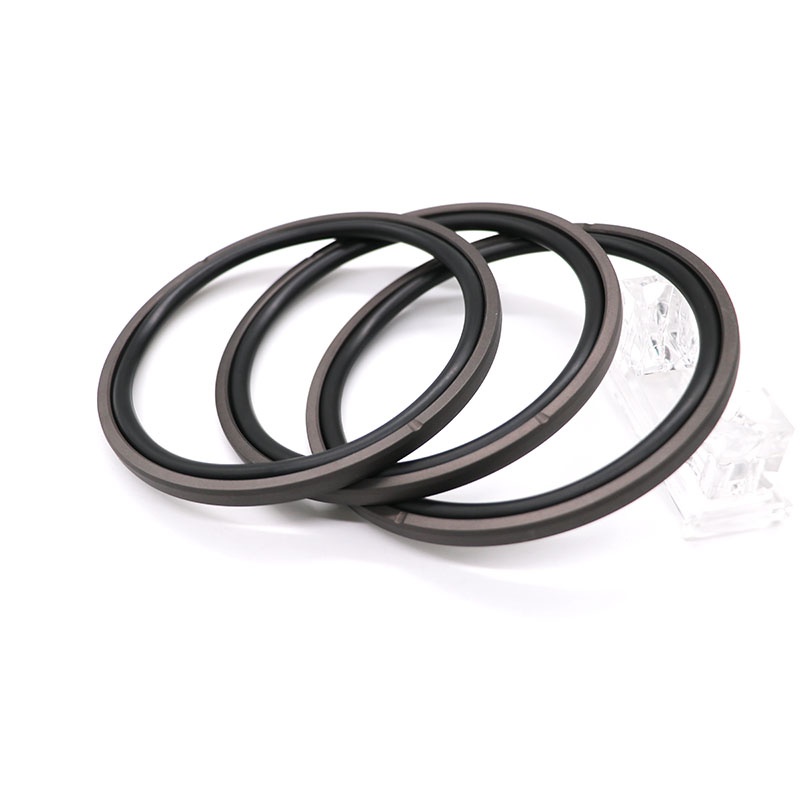

The SPGO compact piston seal is a PTFE O-ring energized bidirectional piston seal designed for double-acting hydraulic cylinders . It consists of a high-performance filled PTFE sealing ring with an NBR or FKM O-ring energizer that provides preload for low-pressure sealing . The seal offers low friction, excellent wear resistance, and high pressure capability, making it ideal for excavators, loaders, bulldozers, and other construction machinery hydraulic systems .
SANPING SEAL – Engineering Machinery High-End Seals – 17 Years Export Expertise
Product Overview
The SPGO seal is a versatile, double-acting piston seal developed for sealing between two media such as fluid and gas . The combination of a PTFE sealing ring and a rubber O-ring creates a compact, high-performance sealing solution that delivers both the low friction of PTFE and the elastic sealing properties of rubber elastomers .
How It Works
The SPGO seal operates through an O-ring activation mechanism. The NBR or FKM O-ring sits behind the PTFE sealing ring and provides initial preload for sealing under low or zero pressure conditions. When system pressure increases, the hydraulic fluid activates the O-ring, which pushes the PTFE ring outward with greater force, creating a self-energizing sealing effect . This design ensures reliable bidirectional sealing across the full pressure range.

Specifications and Parameters

Parameter Detail
Product Name SPGO Compact Piston Seal / Glyd Ring
Type Double-acting, O-ring energized piston seal
Sealing Ring Material Filled PTFE (PTFE + bronze, carbon fiber, or other fillers)
Energizer Material NBR (standard) / FKM (high temperature)
Color Dark gray, brown, green
Working Pressure ≤ 40 MPa
Temperature Range (NBR) -45°C to +120°C (depending on O-ring material)
Temperature Range (FKM) -45°C to +200°C
Working Speed ≤ 5 m/s
Medium Mineral hydraulic oil, fire-resistant fluids, water, air
Application Piston seal for double-acting hydraulic cylinders
Product Features
1. Low Friction & No Stick-Slip
The PTFE sealing ring provides a very low coefficient of friction, which reduces wear and eliminates crawling phenomenon (stick-slip) even at extremely low speeds. This allows for smooth operation at both high and low speeds.
2. Bidirectional Sealing
The SPGO seal is specifically designed for double-acting applications, providing reliable sealing in both directions of piston movement.
3. High Pressure Capability
With a maximum working pressure of 40 MPa, the SPGO seal offers excellent extrusion resistance and maintains stable performance under shock loads and pressure peaks.
4. Large Extrusion Gap Tolerance
The seal allows for larger piston-to-cylinder gaps compared to general seals, which reduces machining costs and makes it suitable for applications with contaminated media.
5. Simple Groove Design
SPGO seals feature a simple groove design that is easy to machine and suitable for one-piece (integral) pistons.
6. Wide Temperature Range
By changing the O-ring material (NBR, FKM), the seal can adapt to temperatures ranging from -45°C to +200°C.
7. Excellent Material Adaptability
The filled PTFE sealing ring can be customized with different fillers (bronze, carbon, etc.) to meet specific application requirements.
