HBTS Buffer Ring

Brand : SANPING SEAL
ltem NO. : HBTS
Product Origin : China
Shipping Port : Guangzhou
MOQ : 10 pieces

Categories: ,

Contact Now

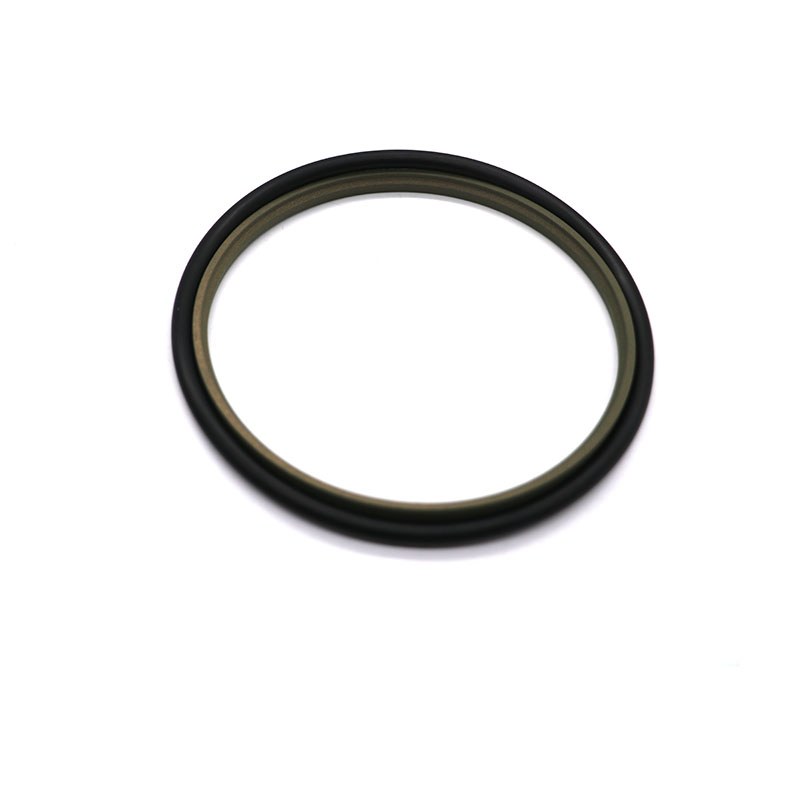

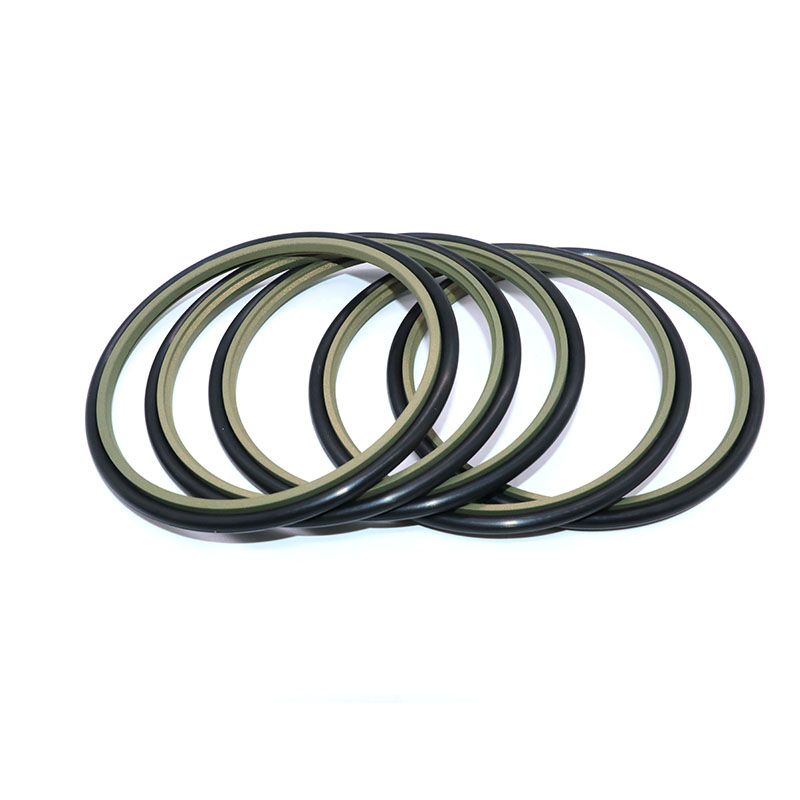

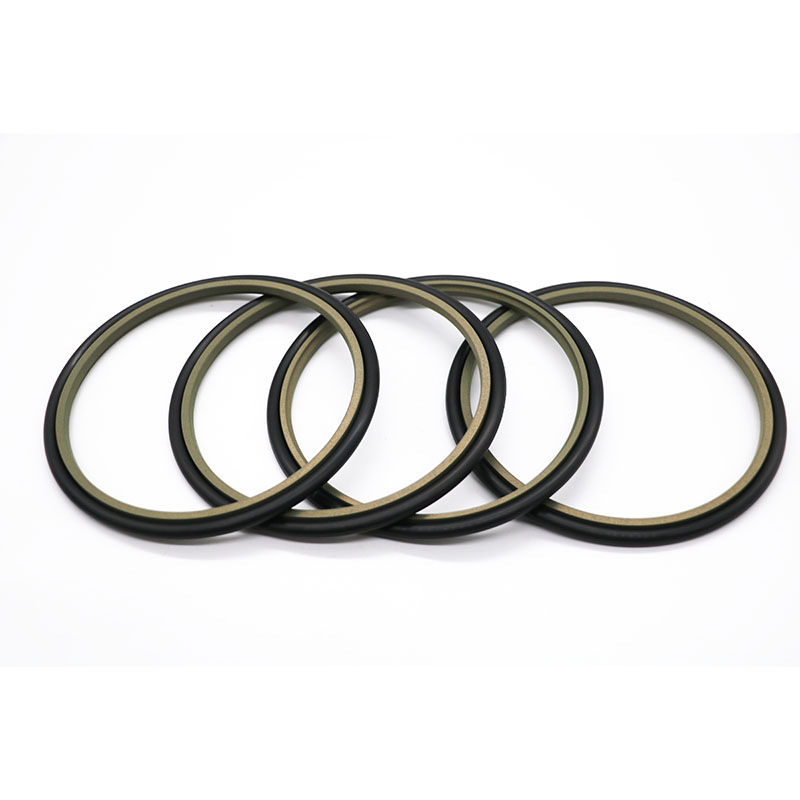

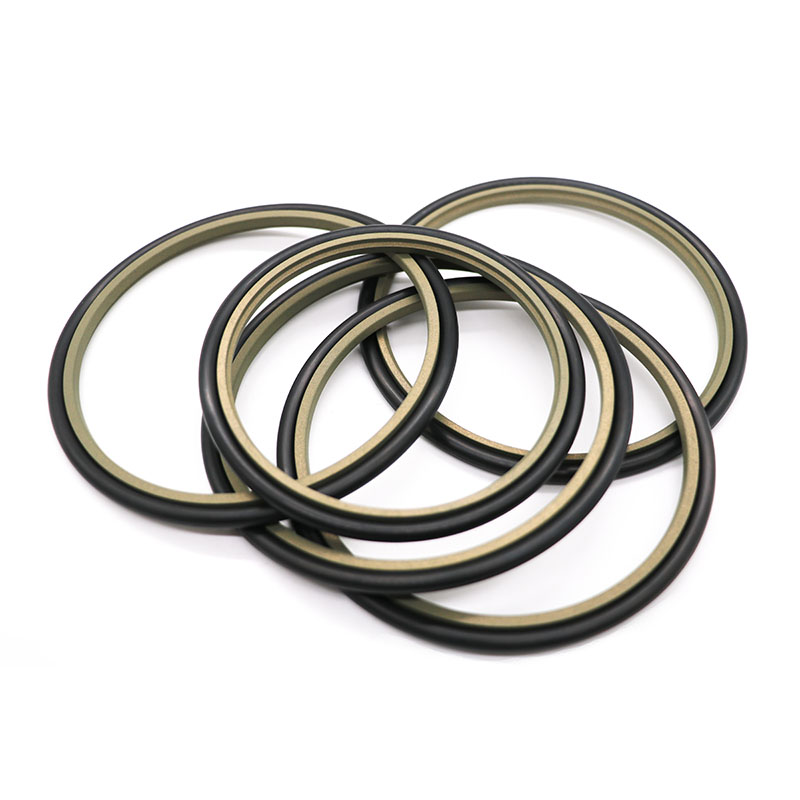

The HBTS buffer ring is a PTFE step rod seal designed to absorb shock and fluctuating pressures in hydraulic systems . It consists of a PTFE sliding element and an elastomer O-ring energizer . This combination provides low friction, high pressure capability, and excellent buffering performance, protecting the main rod seal from pressure spikes and high-temperature fluids .
SANPING SEAL – Engineering Machinery High-End Seals – 17 Years Export Expertise
Product Overview
The HBTS buffer ring (also known as a step seal) is a high-performance hydraulic sealing solution used in combination with the main piston rod seal . Its primary function is to absorb shock and fluctuating pressures under high loads, isolate high-temperature fluids, and improve the durability of the primary sealing system .
The HBTS features a stepped profile that provides excellent dynamic and static sealing performance, making it an ideal choice for applications that require precision, durability, and efficiency .
How It Works
The HBTS operates through an O-ring activation mechanism . The PTFE sliding element forms the primary sealing interface with the rod. The NBR or FKM O-ring acts as an energizer, providing preload to maintain sealing contact under low pressure. As system pressure increases, the hydraulic fluid activates the O-ring, enhancing the seal’s contact force.
The conical surface structure reduces the contact area between the sealing lip and the working surface, thereby minimizing friction resistance . Relief grooves on the tapered surface allow for the release of back pressure, ensuring stable sealing performance .

Specifications and Parameters

Parameter NBR Version FKM Version
Product Name HBTS Buffer Ring / Step Seal HBTS Buffer Ring / Step Seal
Type Step rod seal / Buffer seal Step rod seal / Buffer seal
Sliding Element Material Filled PTFE (PTFE + bronze, carbon, etc.) Filled PTFE (PTFE + bronze, carbon, etc.)
Energizer Material NBR (Nitrile Butadiene Rubber) FKM (Fluororubber / Viton)
Color (PTFE) Various Various
Working Pressure ≤ 35 MPa  ≤ 35 MPa
Temperature Range -55°C to +100°C  -20°C to +160°C
Working Speed ≤ 1.5 m/s  ≤ 1.5 m/s
Medium Mineral oil-based hydraulic fluids, water-glycol, oil-water emulsions  Mineral oil-based hydraulic fluids, phosphate ester fluids
Application Rod buffer seal for hydraulic cylinders Rod buffer seal for hydraulic cylinders
Product Features
1. Excellent Buffering Performance
The HBTS absorbs shock and fluctuating pressures under high loads, protecting the main rod seal from pressure spikes and extending the overall sealing system life .
2. Low Friction Operation
The PTFE sliding element provides very low friction, reducing wear and eliminating stick-slip behavior .
3. High Pressure Capability
With a working pressure up to 35 MPa, the HBTS maintains stable performance under demanding conditions .
4. Wide Temperature Range
Available with NBR energizer (-55°C to +100°C) or FKM energizer (-20°C to +160°C), suitable for various operating environments .
5. Back Pressure Relief
Relief grooves on the tapered surface allow back pressure to dissipate, ensuring reliable sealing performance .
6. Strong Adaptability
Suitable for high-speed, short-stroke operations, and large rod diameters in high-pressure fluid applications .
7. Easy Groove Design
Features a simple groove design that is easy to machine and complies with NOK-HBTS series standards .
Need HBTS buffer rings for your hydraulic cylinder application?
Contact SANPING SEAL today with your rod size requirements. Our team will provide a free quote within 24 hours.
